Sheet Metal Press Brake Price: Complete 2026 Buyer's Guide
السعر فرامل الصفائح المعدنية in 2026 ranges from $5,000 for a used basic machineإلى النهاية$500,000 for a fully automated CNC system. Where your project lands in that range depends on tonnage, machine type, controller quality, and where the machine is built. This guide breaks down every pricing variable so you can budget accurately and avoid overpaying.
Average Sheet Metal Press Brake Price in 2026
The sheet metal press brake price varies significantly across machine categories. In general, buyers should expect figures in these ranges:
| نوع الآلة | Estimated Price (USD) |
|---|---|
| Basic Mechanical / Manual | $5,000 – $20,000 |
| هيدروليكي للمبتدئين | $10,000 – $30,000 |
| CNC هيدروليكي متوسط المدى | $30,000 – $80,000 |
| Electric / Servo Press Brake | $50,000 – $150,000 |
| CNC صناعي عالي الحمولة | $150,000 – $500,000+ |
These are ex-factory (EXW) prices. Your landed cost — after shipping, customs, and installation — will be higher. For a full breakdown by tonnage class from 40T to 600T, the دليل تكلفة فرامل الضغط CNC covers each tier in detail.
5 Factors That Drive the Sheet Metal Press Brake Price
نوع الآلة ونظام الدفع
The drive system is the single biggest factor in the sheet metal press brake price. Hydraulic machines use fluid pressure to deliver force, making them the most affordable option for heavy-duty bending. Electric (servo) machines, on the other hand, cost 20–30% more upfront but consume far less power per cycle.
A mid-range hydraulic CNC press brake with a Delem controller starts around $30,000. A comparable electric model starts near $50,000. For high-volume shops, the electric machine typically pays back that premium within two to three years through energy savings alone.
الحمولة وطول الانحناء
Tonnage — the force the machine applies — directly scales the cost. A 40-ton machine bending thin aluminum brackets sits at a completely different price point than a 250-ton machine forming 10mm structural steel.
Bending length matters just as much. A 100-ton machine with a 4000mm bed costs significantly more than a 100-ton machine with a 2000mm bed, because the frame must be heavier and more rigid to prevent deflection across that span.
| حموله | الطول المشترك | Estimated Price (USD) |
|---|---|---|
| 40T | 1300mm – 2000mm | $15,000 – $35,000 |
| 100T | 2500mm – 3200mm | $35,000 – $65,000 |
| 250T | 3200mm – 4000mm | $70,000 – $130,000 |
| 600T | 4000mm+ | $180,000 – $350,000+ |
علامة التحكم CNC

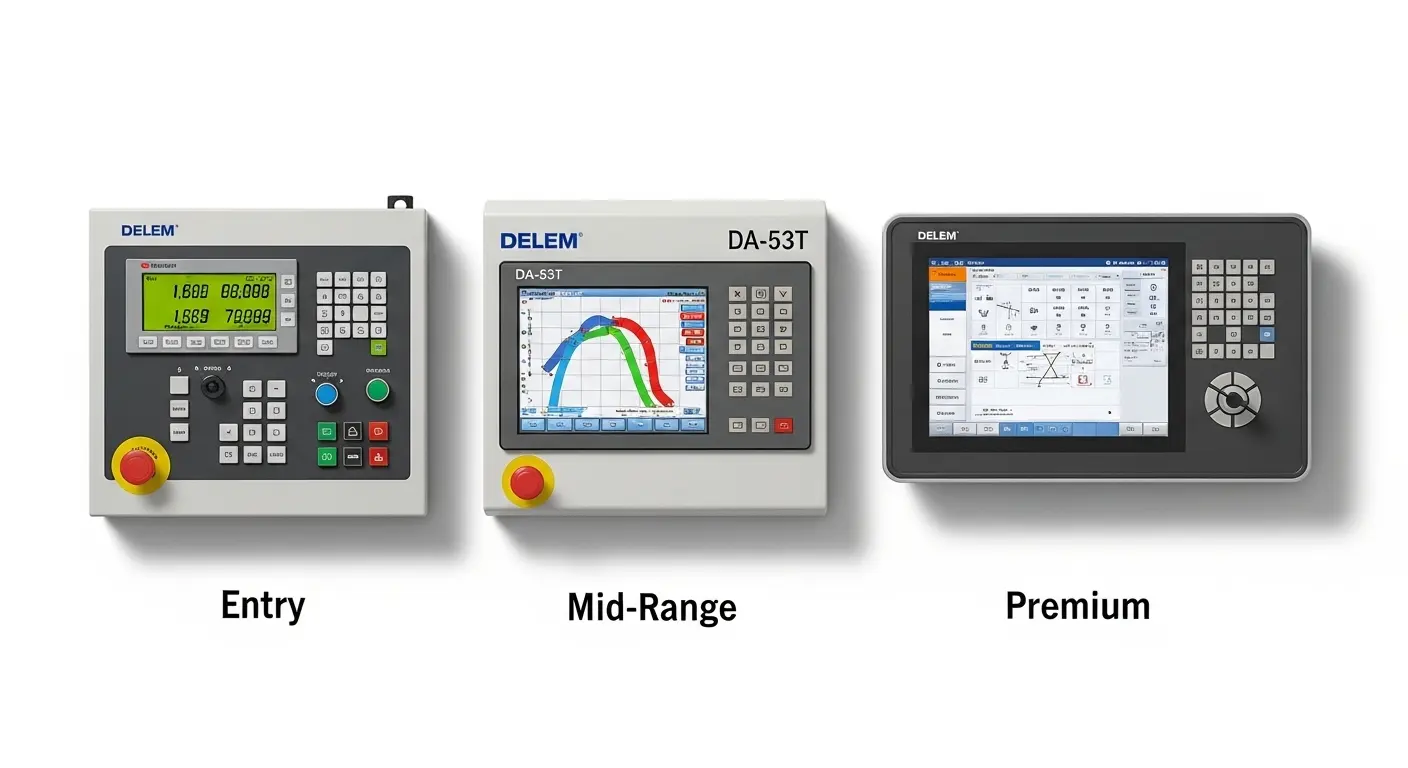

The controller is the brain of the machine, and it adds real money to the final invoice. Basic NC controllers (like E21 or TP10) keep costs low but offer limited programming ability. Mid-tier controllers from جزئيا (Netherlands) or سيبيليك (Switzerland) add $3,000–$5,000 and bring touch-screen interfaces and graphical programming.
وحدات التحكم عالية الجودة مثلديلم DA-66T أو DA-69T can add $10,000–$20,000 to the sheet metal press brake price — but they cut setup time dramatically and support 3D bending simulation, which pays back fast in complex production environments.
بلد التصنيع
Where the machine is built has a direct and measurable impact on pricing:
- China: Widest price range. Budget machines from $8,000; high-export-grade machines from $25,000 that rival European entry-level quality at 40% lower cost
- Turkey: علامات تجارية مثل دورما وإيرمكسان حاصلة على شهادة CE وتتكلف بنسبة 30–50٪ أعلى من الأسعار الصينية المكافئة — وهي قيمة متوسطة قوية
- Europe (Germany, Italy, Switzerland): العلامات التجارية الفاخرة مثل Trumpf أو Bystronic تكلف من 2 إلى 3 أضعاف سعر نظيراتها الصينية، لكنها تقدم سرعة ودقة لا مثيل لها
For buyers importing into South Asia or the Middle East, Turkish machines often represent the strongest value-to-reliability ratio. You can explore Turkish press brake availability and sourcing options through وكلاء فرامل الضغط في تركيا JS RAGOS.
الميزات والمحاور الاختيارية
Every added feature adds dollars. Common extras that push the sheet metal press brake price higher include:
- Additional backgauge axes (R, Z1, Z2): $2,000–$4,000 each
- Laser safety systems (LazerSafe / DSP): $3,000–$6,000
- Automatic crowning: ~$2,500 (critical for beds over 3 meters)
- Tooling packages: $3,000–$10,000 depending on punch and die variety
New vs. Used Sheet Metal Press Brake — Which Price Makes More Sense?
A used machine can cut the initial sheet metal press brake price by 40–60%. For a basic shop doing low-volume, low-tolerance work, that trade-off can work well. For anything more demanding, be cautious.
Used press brakes often lack modern safety certifications (CE, OSHA-compliant light curtains), updated controller software, and energy-efficient drive systems. A machine that saves $15,000 upfront but costs $4,000 per year in extra electricity and $3,000 in maintenance quickly loses its financial advantage.
The smartest buyers check three things on any used machine: the condition of the hydraulic seals, the controller software version, and the availability of local spare parts for that specific brand. For fabricators needing consistent output on thick plate, a purpose-built فرامل الضغط الثقيلة with a reinforced frame is worth the price premium over an aged used machine that deflects under full load.
التكاليف الخفية التي تغير سعر فرامل الضغط الحقيقي للصفائح المعدنية
The ex-factory quote is just the beginning. Before finalizing your budget, account for all of the following:
- Ocean freight and logistics: Heavy machines in flat-rack containers cost significantly more to ship than standard cargo. A 100-ton press brake typically ships on a 20ft flat-rack or open-top container.
- Import duties and customs: Depending on your country, customs duties can add 25–45% on top of the invoice price. In Pakistan, for example, PCT Code 8462 attracts Customs Duty, Sales Tax, and Income Tax simultaneously. The full breakdown is covered on the صفحة سعر وتكلفة الاستيراد في باكستان.
- Installation and commissioning: A supplier engineer's travel, accommodation, and daily allowance can add $1,500–$3,500.
- Foundation and rigging: Large machines (250T+) may require reinforced concrete pits, adding $5,000–$20,000 before the machine even runs.
- Operator training: CNC press brake training for a two-person team typically takes 2–5 days and may involve per-day consultant fees.
Before sending any payment, use a structured قائمة التحقق من أسئلة الاستيراد to verify incoterms, warranty scope, and commissioning coverage. Missing one clause in your LC (Letter of Credit) can cost more than the entire tooling package.
كيفية الحصول على أفضل سعر لفرامل الضغط على صفائح معدنية
Getting the best sheet metal press brake price is not about finding the cheapest machine. It is about paying the right price for the right machine. Here is how to do that:
Match tonnage to your actual workload. Over-speccing costs money. Under-speccing breaks machines. Run the tonnage calculation based on the thickest material you bend at the widest V-opening you use — not on "what might come in one day."
Buy direct from the manufacturer where possible. Local dealers typically mark up machines by 30–40% to cover showroom overhead and sales commissions. Buying factory-direct eliminates that layer and puts that budget back into better controller options or tooling.
Compare the right brands before committing. A heavier frame, better hydraulic components (Rexroth, Bosch), and a proven controller brand matter more than a low headline price. The مصنعو فرامل Top Press في عام 2026 guide covers how brands compare across quality tiers from Chinese value-grade to European premium.
Factor in total cost of ownership, not just the sticker price. A servo-hybrid machine at $55,000 that saves 40% on electricity annually outperforms a $40,000 hydraulic machine over three to four years of production volume.
الأسئلة الشائعة حول سعر فرامل الصفائح المعدنية
What is the starting price for a sheet metal press brake?
A basic hydraulic press brake starts at roughly $10,000–$15,000 new. Used machines can be found under $5,000, though they typically lack modern safety features and current software compatibility.
What affects the sheet metal press brake price the most?
Tonnage, bending length, and the CNC controller brand are the three biggest cost drivers. Country of origin and the number of backgauge axes also play a significant role in the final quote.
Is a Chinese press brake worth buying?
Yes — provided you buy from a manufacturer producing high-export-grade machines. Chinese-manufactured machines exist at every quality level, from budget-grade to machines matching European entry-level quality at 40% lower cost. The difference is in the frame weight, hydraulic component brands, and controller quality.
How much more does a CNC press brake cost than a standard hydraulic one?
A standard hydraulic machine at 100 tons typically costs $30,000–$50,000. A fully CNC version at the same tonnage runs $35,000–$65,000, with the premium reflecting the controller and backgauge system.
What is the landed cost of a press brake when importing?
Import duties, freight, and local handling typically add 30–50% above the ex-factory price. A machine quoted at $25,000 FOB can easily land at $35,000–$40,000 after all costs. The full انهيار تكلفة فرامل الضغط CNC covers landed cost calculations in detail.
